Joint fitting XRT and GBM data with XSPEC models

Goals

3ML is designed to properly joint fit data from different instruments with thier instrument dependent likelihoods. We demostrate this with joint fitting data from GBM and XRT while simultaneously showing hwo to use the XSPEC models form astromodels

Setup

You must have you HEASARC initiated so that astromodels can find the XSPEC libraries.

[1]:

import warnings

warnings.simplefilter("ignore")
import numpy as np

np.seterr(all="ignore")

[1]:

{'divide': 'warn', 'over': 'warn', 'under': 'ignore', 'invalid': 'warn'}

[2]:

%%capture
import matplotlib.pyplot as plt
from pathlib import Path
from threeML import *
from threeML.io.package_data import get_path_of_data_file

# we will need XPSEC models for extinction
from astromodels.xspec import *
from astromodels.xspec.xspec_settings import *

[3]:

from jupyterthemes import jtplot

%matplotlib inline
jtplot.style(context="talk", fscale=1, ticks=True, grid=False)
set_threeML_style()
silence_warnings()

Load XRT data

Make a likelihood for the XRT including all the appropriate files

[4]:

trigger = "GRB110731A"
dec = -28.546
ra = 280.52

p = Path("datasets/xrt")

xrt = OGIPLike(
    "XRT",
    observation=get_path_of_data_file(p / "xrt_src.pha"),
    background=get_path_of_data_file(p / "xrt_bkg.pha"),
    response=get_path_of_data_file(p / "xrt.rmf"),
    arf_file=get_path_of_data_file(p / "xrt.arf"),
)

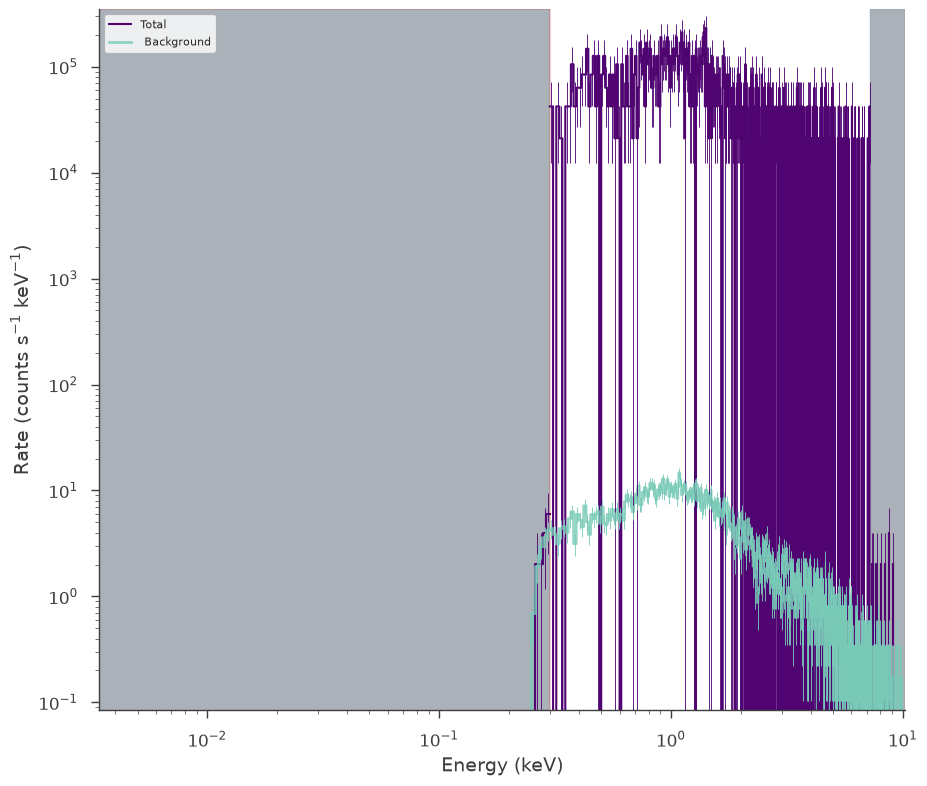

fig = xrt.view_count_spectrum()
ax = fig.get_axes()[0]
_ = ax.set_xlim(1e-1)

21:50:13 INFO      Auto-probed noise models:                                                    SpectrumLike.py:490

         INFO      - observation: poisson                                                       SpectrumLike.py:491

         INFO      - background: poisson                                                        SpectrumLike.py:492

         INFO      bad channels shown in red hatching                                          SpectrumLike.py:3161

../_images/notebooks_joint_fitting_xrt_and_gbm_xspec_models_5_4.png

[5]:

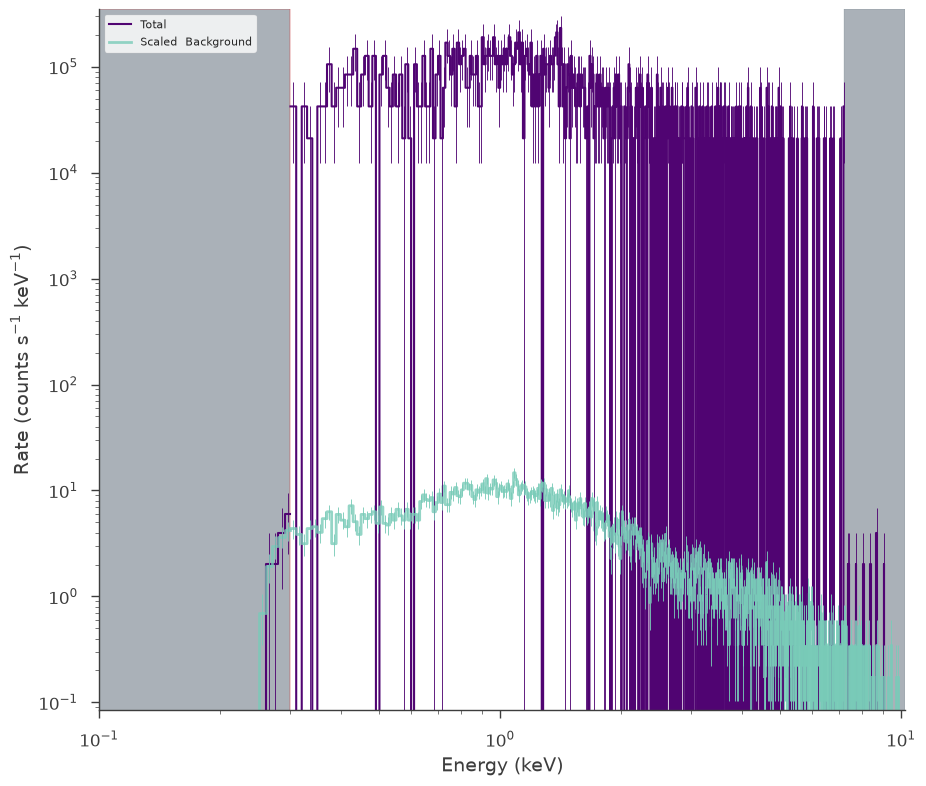

fit = xrt.view_count_spectrum(scale_background=False)

21:50:16 INFO      bad channels shown in red hatching                                          SpectrumLike.py:3161

../_images/notebooks_joint_fitting_xrt_and_gbm_xspec_models_6_1.png

Load GBM data

Load all the GBM data you need and make appropriate background, source time, and energy selections. Make sure to check the light curves!

[6]:

trigger_number = "bn110731465"
gbm_data = download_GBM_trigger_data(trigger_number, detectors=["n3"])

[7]:

# Select the time interval
src_selection = "100.169342-150.169342"
bkg_selection = ["-25.0--10.0", "300-400"]
ts = TimeSeriesBuilder.from_gbm_cspec_or_ctime(
    name="gbm_n3",
    cspec_or_ctime_file=gbm_data["n3"]["cspec"],
    rsp_file=gbm_data["n3"]["rsp"],
)


ts.set_background_interval(*bkg_selection)
ts.save_background("n3_bkg.h5", overwrite=True)

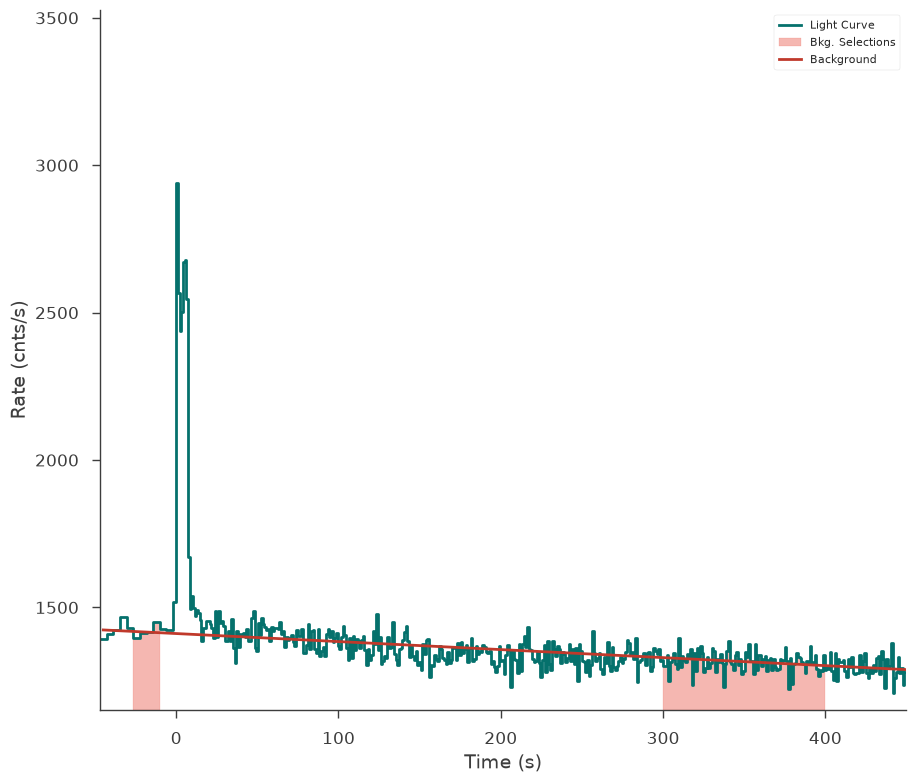

fig = ts.view_lightcurve(-50, 450)

21:50:30 INFO      Auto-determined polynomial order: 1                                binned_spectrum_series.py:389

21:50:43 INFO      None 1-order polynomial fit with the mle method                               time_series.py:458

         INFO      Saved fitted background to n3_bkg.h5                                         time_series.py:1064

         INFO      Saved background to n3_bkg.h5                                         time_series_builder.py:471

../_images/notebooks_joint_fitting_xrt_and_gbm_xspec_models_9_7.png

[8]:

ts = TimeSeriesBuilder.from_gbm_tte(
    "gbm_n3",
    tte_file=gbm_data["n3"]["tte"],
    rsp_file=gbm_data["n3"]["rsp"],
    restore_background="n3_bkg.h5",
)


ts.set_active_time_interval(src_selection)

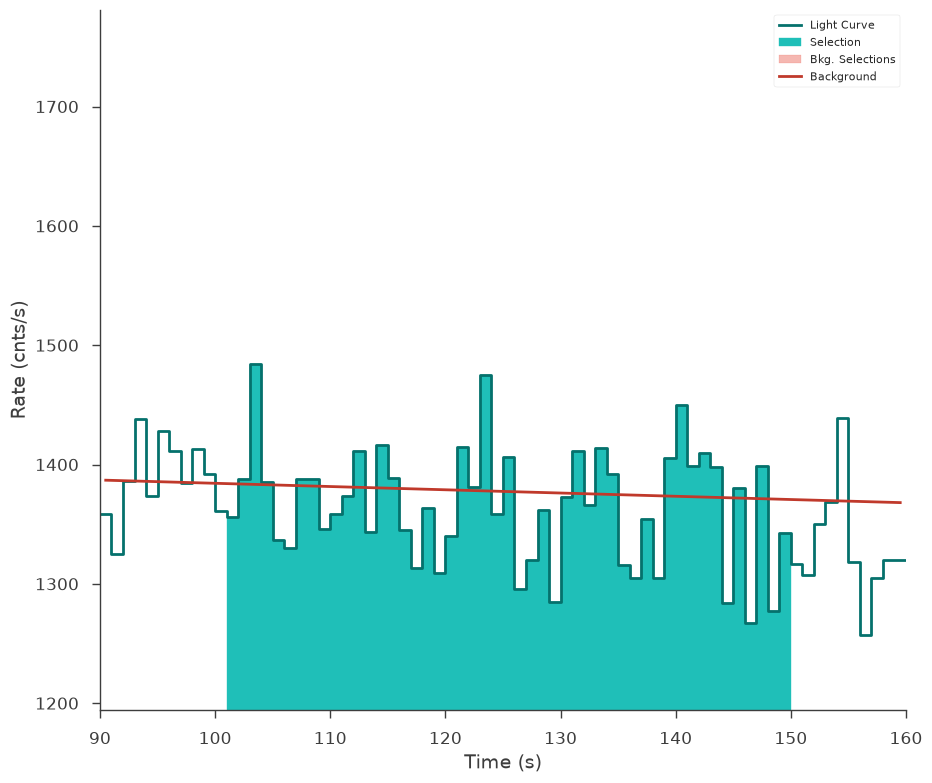

fig = ts.view_lightcurve(90, 160)

21:50:45 INFO      Successfully restored fit from n3_bkg.h5                              time_series_builder.py:171

         INFO      Interval set to 100.169342-150.169342 for gbm_n3                      time_series_builder.py:290

../_images/notebooks_joint_fitting_xrt_and_gbm_xspec_models_10_2.png

[9]:

nai3 = ts.to_spectrumlike()

         INFO      Auto-probed noise models:                                                    SpectrumLike.py:490

         INFO      - observation: poisson                                                       SpectrumLike.py:491

         INFO      - background: gaussian                                                       SpectrumLike.py:492

Make energy selections and check them out

[10]:

nai3.set_active_measurements("8-900")

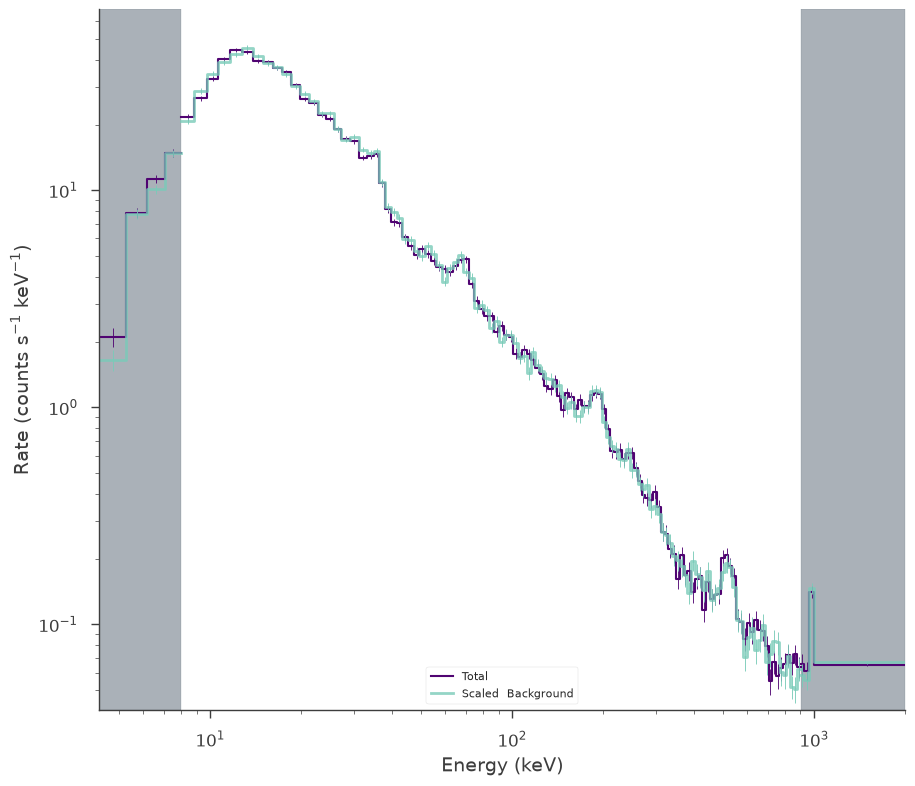

fig = nai3.view_count_spectrum()

         INFO      Range 8-900 translates to channels 4-123                                    SpectrumLike.py:1247

../_images/notebooks_joint_fitting_xrt_and_gbm_xspec_models_13_1.png

Setup the model

astromodels allows you to use XSPEC models if you have XSPEC installed. Set all the normal parameters you would in XSPEC and build a model the normal 3ML/astromodels way! Here we will use the phabs model from XSPEC and mix it with powerlaw model in astromodels.

With XSPEC

[11]:

xspec_abund("angr")

spectral_model = XS_phabs() * XS_zphabs() * Powerlaw()


spectral_model.nh_1 = 0.101
spectral_model.nh_1.bounds = (None, None)
spectral_model.nh_1.fix = True

spectral_model.nh_2 = 0.1114424
spectral_model.nh_2.fix = True
spectral_model.nh_2.bounds = (None, None)
spectral_model.redshift_2 = 0.618
spectral_model.redshift_2.fix = True

 Solar Abundance Vector set to angr:  Anders E. & Grevesse N. Geochimica et Cosmochimica Acta 53, 197 (1989)

With astromodels PHABS

We can build the exact same models in native astromodels thanks to Dominique Eckert. Here, there is no extra function for redshifting the absorption model, just pass a redshift.

[12]:

phabs_local = PhAbs(NH=0.101)
phabs_local.NH.fix = True
phabs_local.redshift.fix = True
phabs_src = PhAbs(NH=0.1114424, redshift=0.618)
phabs_src.NH.fix = True
phabs_src.redshift.fix = True
pl = Powerlaw()
spectral_model_native = phabs_local * phabs_src * pl

Setup the joint likelihood

Create a point source object and model.

Load the data into a data list and create the joint likelihood

With XSPEC models

First we will fit with the XSPEC model

[13]:

ptsrc = PointSource(trigger, ra, dec, spectral_shape=spectral_model)
model = Model(ptsrc)

[14]:

data = DataList(xrt, nai3)

jl = JointLikelihood(model, data, verbose=False)
model.display()

21:50:46 INFO      set the minimizer to minuit                                             joint_likelihood.py:1046

Model summary:

	N
Point sources	1
Extended sources	0
Particle sources	0

Free parameters (2):

	value	min_value	max_value	unit
GRB110731A.spectrum.main.composite.K_3	1.0	0.0	1000.0	keV-1 s-1 cm-2
GRB110731A.spectrum.main.composite.index_3	-2.01	-10.0	10.0

Fixed parameters (8):
(abridged. Use complete=True to see all fixed parameters)

Properties (0):

(none)

Linked parameters (0):

(none)

Independent variables:

(none)

Linked functions (0):

(none)

[15]:

res = jl.fit()
fig = display_spectrum_model_counts(jl, min_rate=[0.5, 0.1])

Best fit values:

	result	unit
parameter
GRB110731A.spectrum.main.composite.K_3	(1.83 +/- 0.07) x 10^-1	1 / (cm2 keV s)
GRB110731A.spectrum.main.composite.index_3	-1.93 +/- 0.05

Correlation matrix:

1.00	-0.57
-0.57	1.00

Values of -log(likelihood) at the minimum:

	-log(likelihood)
XRT	2064.191129
gbm_n3	983.140109
total	3047.331237

Values of statistical measures:

	statistical measures
AIC	6098.677363
BIC	6108.054073

../_images/notebooks_joint_fitting_xrt_and_gbm_xspec_models_24_8.png

[16]:

res = jl.get_contours(spectral_model.index_3, -2.5, -1.5, 50)

../_images/notebooks_joint_fitting_xrt_and_gbm_xspec_models_25_1.png

[17]:

_ = jl.get_contours(
    spectral_model.K_3, 0.1, 0.3, 25, spectral_model.index_3, -2.5, -1.5, 50
)

../_images/notebooks_joint_fitting_xrt_and_gbm_xspec_models_26_1.png

[18]:

fig = plot_spectra(jl.results, show_legend=False, emin=0.01 * u.keV)

../_images/notebooks_joint_fitting_xrt_and_gbm_xspec_models_27_2.png

Fit with astromodels PhAbs

Now lets repeat the fit in pure astromodels.

[19]:

ptsrc_native = PointSource(trigger, ra, dec, spectral_shape=spectral_model_native)
model_native = Model(ptsrc_native)

[20]:

data = DataList(xrt, nai3)

jl_native = JointLikelihood(model_native, data, verbose=False)
model.display()

22:08:45 INFO      set the minimizer to minuit                                             joint_likelihood.py:1046

Model summary:

	N
Point sources	1
Extended sources	0
Particle sources	0

Free parameters (2):

	value	min_value	max_value	unit
GRB110731A.spectrum.main.composite.K_3	0.183083	0.0	1000.0	keV-1 s-1 cm-2
GRB110731A.spectrum.main.composite.index_3	-1.932241	-10.0	10.0

Fixed parameters (8):
(abridged. Use complete=True to see all fixed parameters)

Properties (0):

(none)

Linked parameters (0):

(none)

Independent variables:

(none)

Linked functions (0):

(none)

[21]:

res = jl_native.fit()
fig = display_spectrum_model_counts(jl_native, min_rate=[0.5, 0.1])

Best fit values:

	result	unit
parameter
GRB110731A.spectrum.main.composite.K_3	(1.83 +/- 0.07) x 10^-1	1 / (cm2 keV s)
GRB110731A.spectrum.main.composite.index_3	-1.93 +/- 0.05

Correlation matrix:

1.00	-0.57
-0.57	1.00

Values of -log(likelihood) at the minimum:

	-log(likelihood)
XRT	2064.181385
gbm_n3	983.140028
total	3047.321413

Values of statistical measures:

	statistical measures
AIC	6098.657715
BIC	6108.034425

../_images/notebooks_joint_fitting_xrt_and_gbm_xspec_models_32_8.png

[22]:

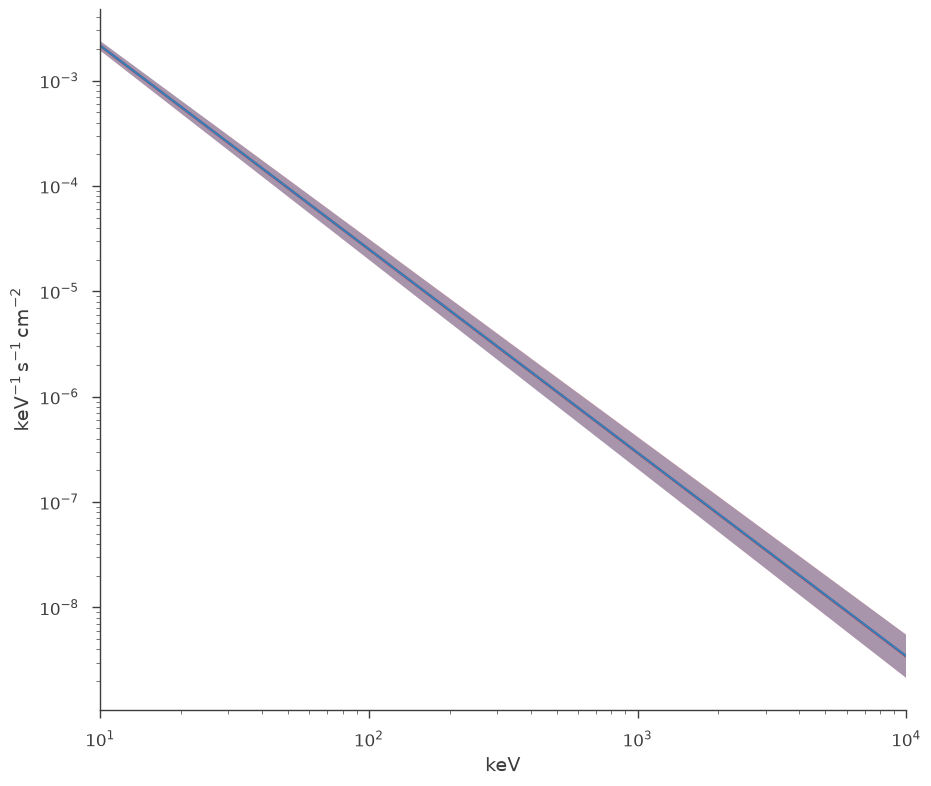

fig = plot_spectra(jl.results, jl_native.results, show_legend=False, emin=0.01 * u.keV)

../_images/notebooks_joint_fitting_xrt_and_gbm_xspec_models_33_3.png

Both approaches give the same answer as they should.

[ ]:
